Product Overview

Coats MAXX 70 Rim Clamp Tire Changer with Robo-Arm®

The Coats MAXX 70 is a durable, high-production rim-clamp tire changer designed for passenger-car and light-truck service. Its rugged chassis, wide clamping range, Robo-Arm® bead depressor, high-pressure dual-nozzle bead sealer, and no-index tabletop give technicians the capability needed for everyday work as well as demanding low-profile and run-flat tire assemblies.

Ready to handle externally clamped rims from 6 to 24 inches, tires up to 50 inches in diameter, and rims up to 16 inches wide, the MAXX 70 delivers broad capability without requiring clamp extensions for its published range. Electric and air-drive configurations are available, along with factory-installed wheel-lift packages for shops that regularly handle heavier wheel assemblies.

Rugged Capability for Busy Tire Shops

Broad clamping range: Services externally clamped rims from 6 to 24 inches and rims up to 16 inches wide.
Robo-Arm® assistance: Direct bead pressure helps keep difficult tires positioned in the drop center.
Fast bead seating: Dual high-pressure nozzles concentrate airflow at the tire bead and rim.
Multiple configurations: Choose 110V electric, 220V electric, or air drive, with factory-installed wheel-lift versions available.

Key Features

Coats MAXX 70 durable tire changer chassis

Durable, Reliable Chassis

The robust chassis is engineered for demanding wheel assemblies and was tested through 250,000 bead-breaking cycles to withstand harsh shop environments.

Robo-Arm® Bead Depressor

The articulating Robo-Arm applies direct pressure to the tire bead and helps hold it in the drop center during mounting, providing added control with stiff-sidewall, low-profile, and run-flat tires.

High-Pressure Dual-Nozzle Bead Sealer

Two concentrated air jets direct increased airflow toward the bead and rim, helping technicians seat difficult beads quickly and efficiently.

Coats MAXX 70 no-index rim-clamp tabletop

No-Index Tabletop

The tabletop does not need to be indexed when servicing large assemblies, reducing pedal presses and helping technicians maintain an efficient workflow.

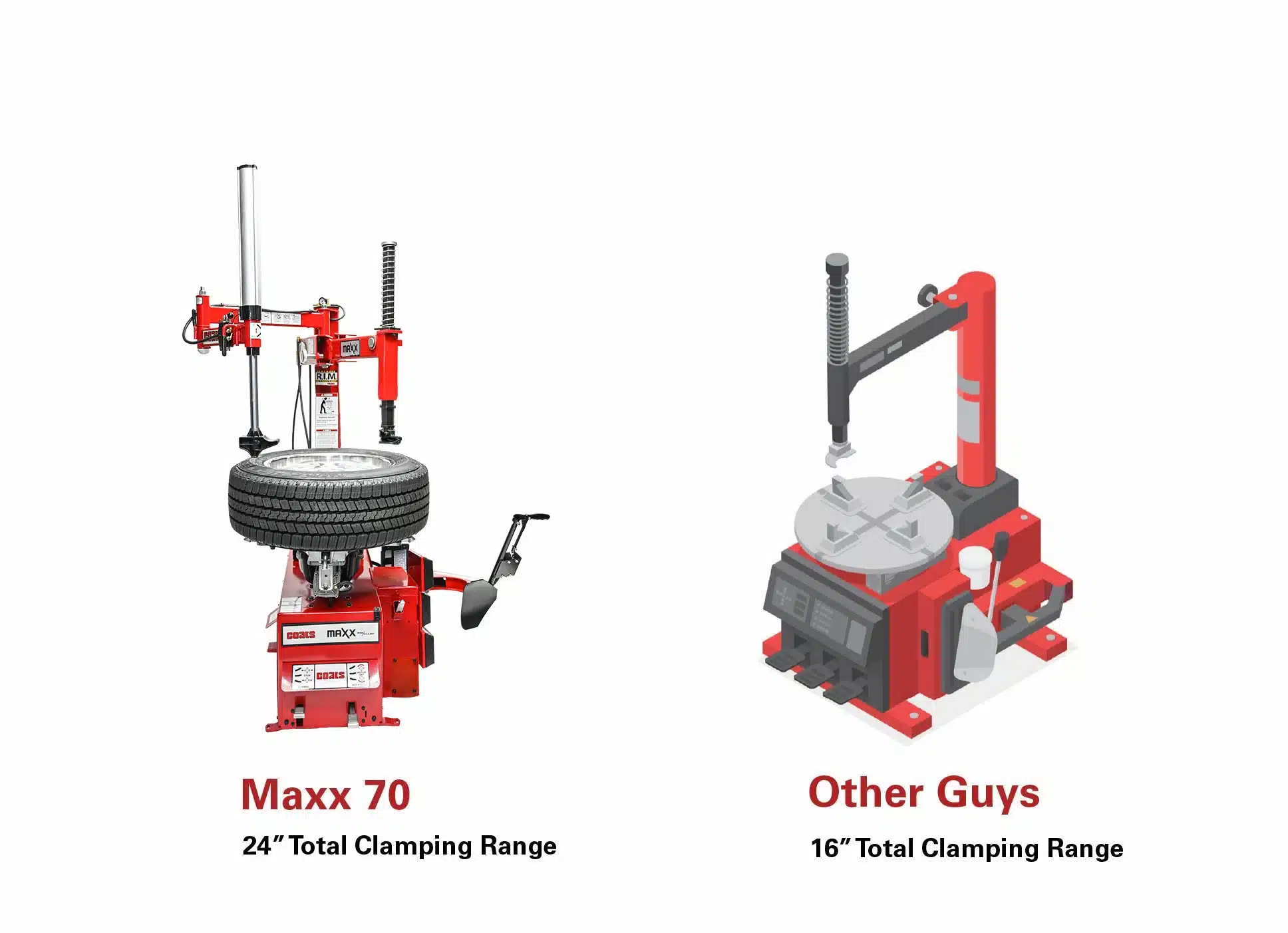

Wide 6-to-24-Inch Clamping Range

The four-clamp tabletop accommodates applications ranging from small specialty wheels through passenger-car, light-truck, and custom wheel assemblies up to 24 inches externally clamped.

Swing-Arm Mount/Demount System

The familiar swing-arm layout and nylon Duckhead® mount/demount tool provide straightforward operation while helping protect the wheel during service.

Standard Equipment

Robo-Arm® bead depressor
Hand-operated bead-loosening control
High-pressure dual-nozzle bead sealer
Swing-away mount/demount arm
Nylon Duckhead® mount/demount tool
Four air-cylinder-operated rim clamps
No-index tabletop

Technical Specifications

Application	Passenger car and light truck
External Rim Diameter	6–24 in
Maximum Tire Diameter	50 in
Maximum Rim Width	16 in
Wheel Clamping	Four rim clamps, air-cylinder operated
Electric Drive	Available in 110V or 220V; 220V model uses a 2 HP motor
Air-Drive Requirement	110–175 PSI at 15 SCFM
Footprint (W × D × H)	74 × 44 × 88 in
Shipping Weight	805 lb

Coats MAXX 70 tire changer footprint dimensions

Available Configurations

Configuration	Without Wheel Lift	With Wheel Lift
110V Electric	800MAXX70	800MAXX70L
220V Electric	800MAXX70220	800MAXX70220L
Air Drive	800MAXX70A	800MAXX70AL

Select the Correct Configuration

Verify the selected model number, electrical service or compressed-air capacity, installation clearance, access route, and unloading requirements before ordering. The wheel lift is included only with model numbers ending in L; it supports wheel assemblies up to 150 lb when supplied with 150 PSI.
