Product Overview

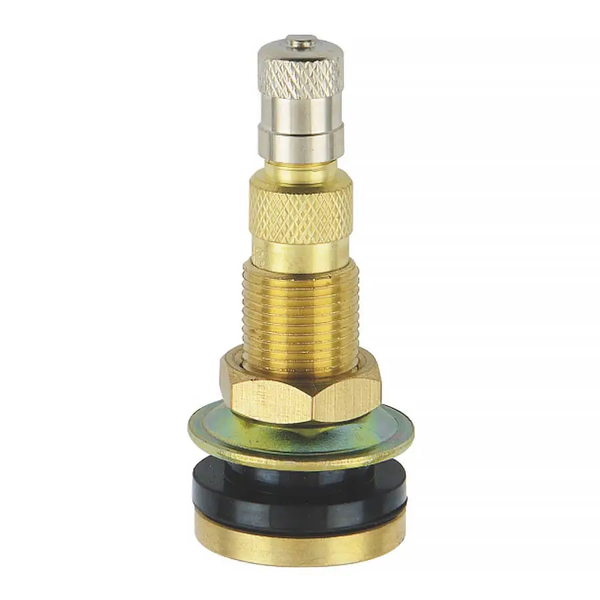

The TR618A Clamp-In Air/Liquid Valve Stem is a heavy-duty valve designed specifically for agricultural, industrial, and off-road equipment that utilize liquid ballast in tubeless tires. Commonly installed on tractors, graders, loaders, and other heavy equipment, the TR618A features a removable CH-3 core housing, allowing a large opening for quick filling or draining of water, calcium chloride, beet juice, or other liquid ballast. Constructed from solid brass with a durable EPDM rubber grommet, the TR618A provides reliable sealing and corrosion resistance while supporting operating pressures up to 90 PSI.

Features

Industry-standard TR618A air/liquid clamp-in valve stem
Designed for tubeless agricultural and industrial tires
Fits 0.625 in. (15.9 mm) rim valve holes
Removable CH-3 core housing allows rapid filling and draining of liquid ballast
Heavy-duty solid brass construction resists corrosion
EPDM rubber sealing grommet for dependable leak protection
Includes CH-3 core housing, valve core, washer, retaining nut, and cap
Rated for 90 PSI maximum cold inflation pressure
Ideal for tractors, graders, loaders, and other off-road equipment.

Specifications

Part Number: TR618A
Product Type: Clamp-In Air/Liquid Valve Stem
Valve Style: Straight
Effective Length: 1.89 in. (48 mm)
Overall Length: Approximately 2.10 in. (54 mm)
Rim Hole Size: 0.625 in. (15.9 mm)
Stem Material: Solid Brass
Seal Material: EPDM Rubber Grommet
Core Housing: CH-3 Removable Air/Liquid Housing
Valve Core: High-Temperature Schrader Core
Maximum Cold Inflation Pressure: 90 PSI
Recommended Installation Torque: 5–8 N·m (44–71 in-lb)

Recommended Applications

Agricultural tractors
Road graders
Wheel loaders
Backhoes
Forestry equipment
Industrial equipment
Tubeless agricultural wheels requiring liquid ballast
Farm equipment with 0.625-inch valve holes

The TR618A is specifically engineered for equipment that requires air and liquid inflation capability. The removable CH-3 core housing creates a large flow opening, making it significantly faster to install or remove liquid ballast compared to standard Schrader valve stems.
