Product Overview

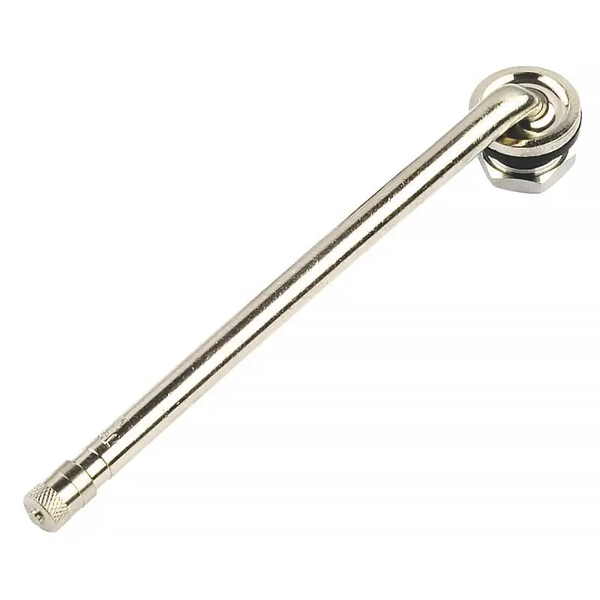

The TR510 Clamp-In Metal Truck Valve Stem is a heavy-duty 90-degree bent valve stem engineered for commercial trucks, buses, trailers, and motorhomes equipped with drop-center aluminum wheels utilizing a 0.625 in. (15.9 mm) valve hole. Its 5.50-inch effective length provides excellent accessibility for dual-wheel and deep-dish wheel applications, making tire inflation and pressure checks quick and convenient. Manufactured from nickel-plated brass with a durable EPDM rubber sealing grommet, the TR510 is built to withstand demanding commercial service and is rated for up to 200 PSI.

Features

Industry-standard TR510 clamp-in truck valve stem
90° bent design for easy access on dual-wheel and deep-dish wheel applications
Fits 0.625 in. (15.9 mm) valve holes
5.50 in. effective length for maximum accessibility
Heavy-duty nickel-plated brass construction resists corrosion
Durable EPDM rubber grommet provides a secure, leak-free seal
High-temperature nickel-plated valve core pre-installed
Rated for 200 PSI maximum cold inflation pressure
Designed specifically for drop-center aluminum truck wheels

Specifications

Part Number: TR510
Product Type: Clamp-In Metal Truck Valve Stem
Valve Style: 90° Bent
Body Length: 4.81 in. (122 mm)
Effective Length: 5.50 in. (140 mm)
Rim Hole Size: 0.625 in. (15.9 mm)
Material: Nickel-Plated Brass
Seal Type: EPDM Rubber Grommet
Valve Core: High-Temperature Nickel-Plated Brass
Maximum Cold Inflation Pressure: 200 PSI
Recommended Installation Torque: 100–125 in-lb

Recommended Applications

Class 6–8 commercial trucks
Semi-trucks
Commercial trailers
Motorhomes
Buses
Fleet maintenance
Drop-center aluminum wheels
Professional heavy-duty tire service

The TR510 is commonly installed on drop-center aluminum truck wheels where a long 90-degree valve stem is needed to simplify access through wheel openings. Its extended reach often eliminates the need for valve extensions while providing reliable performance in high-pressure commercial tire applications.
