Product Overview

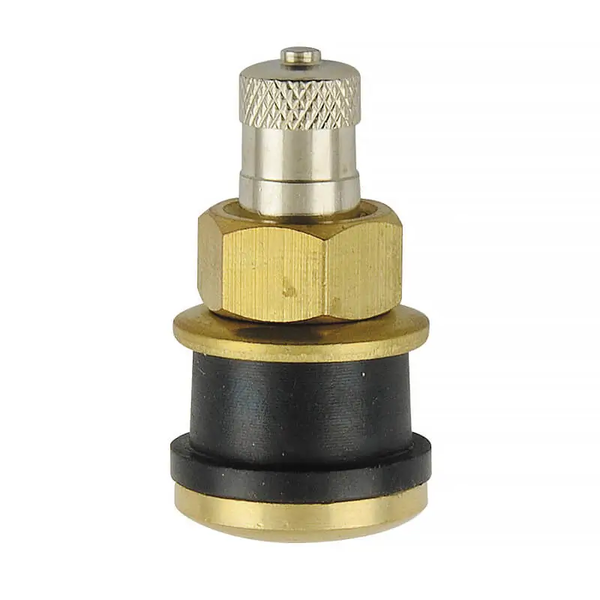

The TR575 Clamp-In Metal Truck Valve Stem is a compact, heavy-duty valve stem designed for commercial trucks, buses, trailers, and heavy-duty equipment utilizing 0.625 in. (15.9 mm) valve holes. With a short 1-1/8 in. (29 mm) effective length, the TR575 is ideal for wheels with shallow valve pockets or applications where a low-profile valve stem is preferred. Constructed from solid brass with a durable EPDM rubber grommet, the TR575 delivers dependable, leak-free sealing and excellent corrosion resistance for demanding commercial service. It is commonly used on both demountable and non-demountable rims and is rated for up to 200 PSI.
Features
- Industry-standard TR575 clamp-in truck valve stem
- Compact 1-1/8 in. (29 mm) effective length
- Fits 0.625 in. (15.9 mm) rim valve holes
- Heavy-duty solid brass construction for long service life
- EPDM rubber grommet provides a reliable, leak-free seal
- High-temperature nickel-plated brass valve core installed
- Suitable for demountable and non-demountable truck rims
- Rated for 200 PSI maximum cold inflation pressure
- Includes valve stem, valve core, rubber grommet, washer, retaining nut, and metal cap.
Specifications
- Part Number: TR575
- Product Type: Clamp-In Metal Truck Valve Stem
- Valve Style: Straight
- Effective Length: 1.125 in. (29 mm)
- Overall Length: Approximately 1.25 in. (32 mm)
- Rim Hole Size: 0.625 in. (15.9 mm)
- Stem Material: Solid Brass
- Seal Material: EPDM Rubber Grommet
- Valve Core: High-Temperature Nickel-Plated Brass
- Maximum Cold Inflation Pressure: 200 PSI
- Recommended Installation Torque: 35–55 in-lb (4–6 N·m)
Recommended Applications
- Commercial trucks
- Semi-trucks
- Commercial trailers
- Buses
- Fleet vehicles
- Heavy-duty equipment
- Demountable and non-demountable rims
- Wheels with 0.625-inch valve holes
The TR575 is one of the shortest clamp-in truck valve stems available, making it an excellent choice where clearance is limited or a low-profile installation is desired. Its rugged brass construction and 200 PSI rating make it suitable for professional truck tire service and fleet maintenance.
