Product Overview

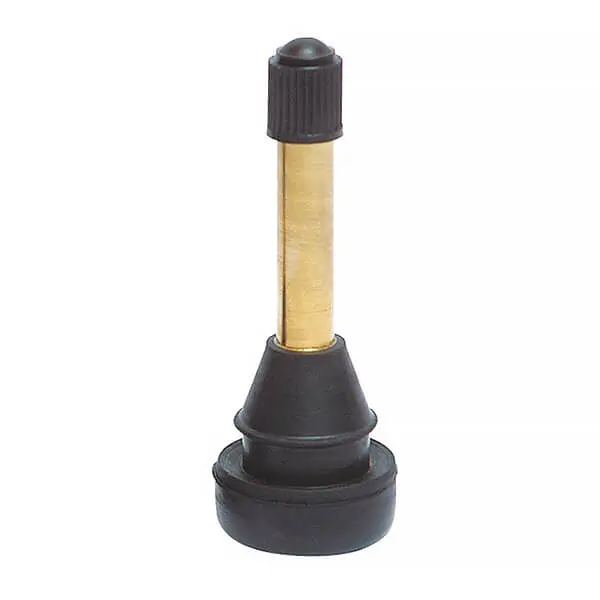

The TR802HP High-Pressure Snap-In Valve Stem is a heavy-duty rubber valve stem designed for light trucks, heavy-duty pickups, trailers, agricultural equipment, and commercial applications requiring higher tire inflation pressures. Designed to fit 0.625 in. (15.9 mm) valve stem holes, the TR802HP features a durable EPDM rubber body, reinforced brass valve barrel, and a high-temperature nickel-plated valve core for dependable sealing and long service life. Its 2.00-inch effective length provides improved access for tire inflation, making it ideal for deep-dish wheels and trailer applications. Rated for 100 PSI maximum cold inflation pressure, the TR802HP is the longer counterpart to the TR801HP.

Features

Industry-standard TR802HP high-pressure snap-in valve stem
Rated for 100 PSI maximum cold inflation pressure
Fits 0.625 in. (15.9 mm) rim valve holes
Extended 2.00 in. effective length for easier inflation access
Premium ozone-resistant EPDM rubber construction
Reinforced brass valve barrel for added strength
High-temperature nickel-plated Schrader valve core
Snap-in design for quick and secure installation
Ideal for trucks, trailers, agricultural equipment, and commercial vehicles

Specifications

TR Number: TR802HP
Product Type: High-Pressure Snap-In Rubber Valve Stem
Valve Style: Straight
Effective Length: 2.00 in. (51 mm)
Rim Hole Diameter: 0.625 in. (15.9 mm)
Maximum Rim Thickness: 0.205 in. (5.2 mm)
Maximum Cold Inflation Pressure: 100 PSI
Valve Body Material: EPDM Rubber
Valve Barrel Material: Brass
Valve Core: High-Temperature Nickel-Plated Schrader Core

Recommended Applications

Heavy-duty pickup trucks
Utility trailers
Boat trailers
Equipment trailers
Mobile home transport wheels
Agricultural equipment
Commercial trailers
Wheels with 0.625-inch valve holes requiring inflation pressures up to 100 PSI

The TR802HP is the extended-length version of the TR801HP, providing easier access for inflating tires on deep wheels or applications where additional stem height is beneficial
