Product Overview

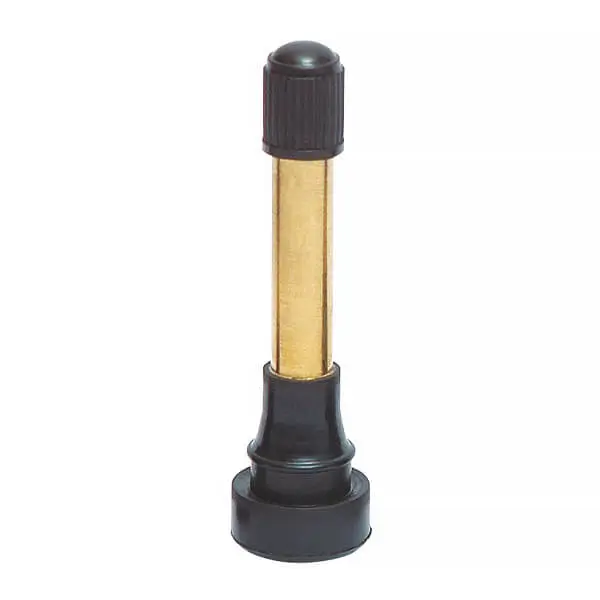

The TR602HP High-Pressure Snap-In Valve Stem is a heavy-duty rubber valve stem engineered for passenger cars, SUVs, light trucks, trailers, and commercial applications requiring higher tire inflation pressures than standard snap-in valve stems. Designed to fit the industry-standard 0.453 in. (11.5 mm) rim hole, the TR602HP features a premium EPDM rubber body, reinforced brass valve barrel, and a high-temperature nickel-plated valve core for dependable sealing and long service life. With an extended profile and an 80 PSI maximum cold inflation pressure, the TR602HP is ideal for applications where additional valve stem height improves accessibility. (rematiptop.com)

Features

Industry-standard TR602HP high-pressure snap-in valve stem
Rated for 80 PSI maximum cold inflation pressure
Fits 0.453 in. (11.5 mm) rim valve holes
Premium ozone-resistant EPDM rubber construction
Reinforced brass valve barrel for increased durability
High-temperature nickel-plated Schrader valve core
Extended length provides improved accessibility
Snap-in design for quick, secure installation
Ideal for trailers, SUVs, light trucks, and higher-pressure tire applications

Specifications

TR Number: TR602HP
Product Type: High-Pressure Snap-In Rubber Valve Stem
Valve Style: Straight
Effective Length: 1.50 in. (38 mm)
Overall Length: 2.00 in. (51 mm)
Rim Hole Diameter: 0.453 in. (11.5 mm)
Maximum Rim Thickness: 0.205 in. (5.2 mm)
Maximum Cold Inflation Pressure: 80 PSI
Valve Body Material: EPDM Rubber
Valve Barrel Material: Brass
Valve Core: High-Temperature Nickel-Plated Schrader Core

Recommended Applications

Passenger cars
SUVs
Light trucks
Utility trailers
Boat trailers
Cargo trailers
Performance vehicles
Wheels with 0.453-inch valve holes requiring inflation pressures up to 80 PSI

The TR602HP provides additional valve stem height compared to the TR600HP, making it easier to access for tire inflation and pressure checks while maintaining the same high-pressure performance and durability.
