Product Overview

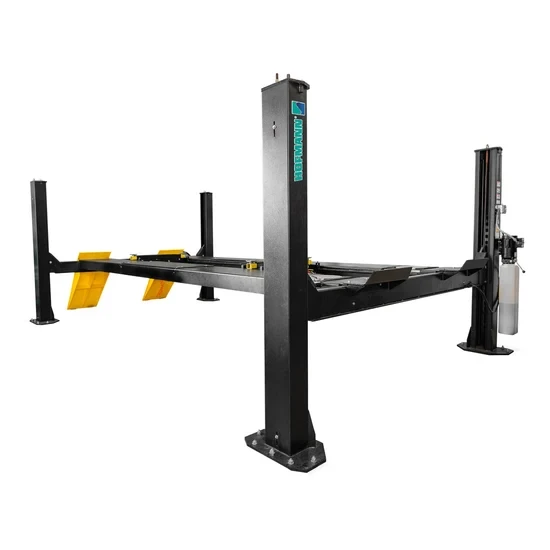

Hofmann FPA18210 18K Four Post Alignment Lift
The Hofmann 18k 4-Post alignment lift offers an impressive 18,000 pounds of lifting capability, with a lifting mechanism that is distinguished by its exceptional durability, high-wear resistance, and seamless, frictionless operation.
Features
- Ali Certified: Our lifts are certified in accordance with the requirements of the Automotive Lift Institute’s ETL Certification Program.
- Form-Integrated Deck & Jack Rail: The seamlessly integrated deck and jack rail, constructed with industry-proven technology, provide additional stability to fundamentally eliminate any detectable vibrations during the alignment process.
- Front Cross Beam: An incorporated front cross beam fortifies the lift structure, enhancing overall stability.
- High-Capacity Lifting: Powerful hydraulic components enable technicians to service a spectrum of vehicles that range from compact sedans to some of the largest, heaviest vehicles on the road, all by utilizing a single lift.
- Longer Decks: Longer pro-style runways enable technicians to efficiently service long-wheelbase vehicles.
Specifications
| Part Number | FPA18210 |
| Lifting Capacity | 18,000 lbs. / 8,165 kg |
| Configuration | Closed Front |
| Overall Width | 152” / 386 cm |
| Overall Height | 97” / 246 cm |
| Max Lifting Height | 72” / 183 cm |
| Lifting Time | 70 seconds |
| Power Requirements | 208-230V 60Hz 1Ph 30A 3HP / 2.2 kW |
| Air Supply Required | 90-120 PSI / 6-8 BAR |
| Shipping Weight |
5,465 lbs. / 2,484 kg |
